CAD Technician

Overview and Key Facts

Man referring to CAD drawings
Education
Education
Associate's degree
Median Pay
Median Pay
$64,280
Job Growth
Job Growth
4.10%
(US Average)
Jobs in 2034
Jobs in 2034
115,100

What Do They Do?

A CAD technician could...


CAD program on computer
Create documents that detail all the components for a new space telescope.
toy

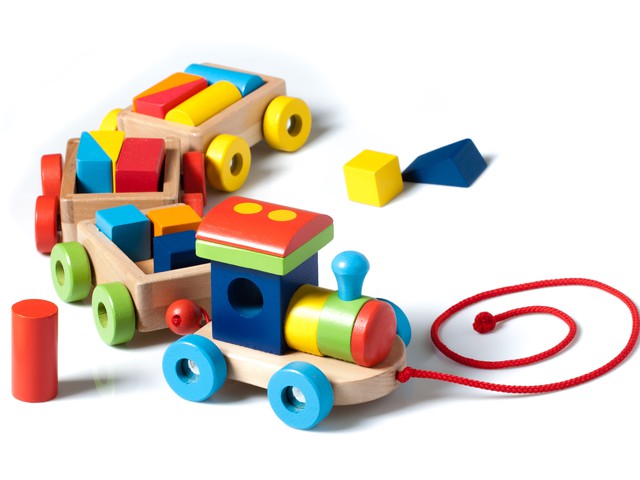

Draw up plans for a new push-pull toy for toddlers.
circuit board

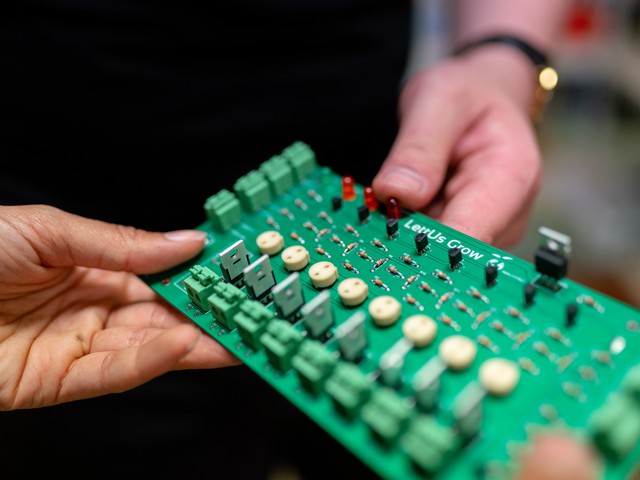

Draw circuit board assembly diagrams so that workers will know how to put them together.
blueprints
Create the construction blueprints for a new skyscraper.

CAD program on computer toy circuit board blueprints

Overview Listen to this section

CAD (computer-aided design) technicians combine art and engineering to prepare the technical drawings and plans from which everything in the world is made—from toys to toasters, houses to hoses, satellites to sewer systems. CAD technicians are essential to the design and construction of everything you see around you.

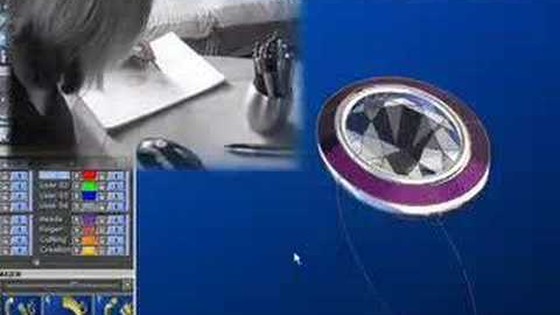

Watch this video on CAD technicians. While many CAD technicians specialize in aerospace, construction, architecture, or manufacturing, CAD technology can also be applied to jewelry-making.
https://www.youtube.com/watch?v=E056GEBtI28

Do You Have the Skills and Characteristics of a CAD Technician?


  1. Active Listening: ?
  2. Critical Thinking: ?
  3. Reading Comprehension: ?
  4. Speaking: ?
  5. Writing: ?
More skills...

Core Tasks

Think about if you'd like the typical tasks a CAD Technician might do:
  • Produce drawings, using computer-assisted drafting systems (CAD) or drafting machines, or by hand, using compasses, dividers, protractors, triangles, and other drafting devices.
  • Draft plans and detailed drawings for structures, installations, and construction projects, such as highways, sewage disposal systems, and dikes, working from sketches or notes.
  • Coordinate structural, electrical, and mechanical designs and determine a method of presentation to graphically represent building plans.
  • Analyze building codes, by-laws, space and site requirements, and other technical documents and reports to determine their effect on architectural designs.
  • Draw maps, diagrams, and profiles, using cross-sections and surveys, to represent elevations, topographical contours, subsurface formations, and structures.
  • Lay out and plan interior room arrangements for commercial buildings, using computer-assisted drafting (CAD) equipment and software.
  • Supervise and train other technologists, technicians, and drafters.
  • Determine the order of work and method of presentation, such as orthographic or isometric drawing.
  • Finish and duplicate drawings and documentation packages according to required mediums and specifications for reproduction, using blueprinting, photography, or other duplicating methods.
  • Draw rough and detailed scale plans for foundations, buildings, and structures, based on preliminary concepts, sketches, engineering calculations, specification sheets, and other data.
  • Correlate, interpret, and modify data obtained from topographical surveys, well logs, and geophysical prospecting reports.
  • Check dimensions of materials to be used and assign numbers to lists of materials.
  • Determine procedures and instructions to be followed, according to design specifications and quantity of required materials.
  • Supervise or conduct field surveys, inspections, or technical investigations to obtain data required to revise construction drawings.
  • Explain drawings to production or construction teams and provide adjustments as necessary.
  • Obtain and assemble data to complete architectural designs, visiting job sites to compile measurements as necessary.
  • Determine quality, cost, strength, and quantity of required materials, and enter figures on materials lists.
  • Locate and identify symbols on topographical surveys to denote geological and geophysical formations or oil field installations.
  • Create freehand drawings and lettering to accompany drawings.
  • Calculate excavation tonnage and prepare graphs and fill-hauling diagrams for use in earth-moving operations.
  • Prepare colored drawings of landscape and interior designs for presentation to client.
  • Calculate weights, volumes, and stress factors and their implications for technical aspects of designs.
  • Prepare cost estimates, contracts, bidding documents, and technical reports for specific projects under an architect's or engineer's supervision.
  • Represent architect or engineer on construction site, ensuring builder compliance with design specifications and advising on design corrections, under supervision.
  • Review rough sketches, drawings, specifications, and other engineering data to ensure that they conform to design concepts.

Salary & Job Openings

Median Salary (Yearly Pay)

Tap or scroll over map to see median salaries for each state

Future Jobs

Blast-Off:

How Will CAD Technician Jobs Grow by 2034?
Projected % Growth
Rapid growth
(10% or higher)
Much faster than average
(7% - 10%)
Faster than average
(5% - 7%)
About as fast as average
(3% - 5%)
Slower than average
(0% - 3%)
Decreasing
Average of all U.S. jobs (5.3%)
CAD Technician jobs (4.10%)
Source: https://www.bls.gov/emp/tables/occupational-projections-and-characteristics.htm

Steps to Get There: Becoming a CAD Technician

High School Subjects to Study

Aim to study the yellow-shaded subjects.
Math
Algebra 1
Geometry
Algebra 2
Pre-Calculus
Calculus
Statistics
Science
Biology
Chemistry
Physics
Environmental Science
Physiology
Bio-Medical / Biotech
IT &
Engineering
Computer Science
Applied Technology
Drafting & CAD Training
Core
English
Foreign Language
Business
Psychology / Sociology

Career Pathway Listen to this section

Employers prefer applicants who have completed postsecondary school training in drafting, which is offered by technical institutes, community colleges, and some 4-year colleges and universities. Employers are most interested in applicants with well-developed drafting and mechanical drawing skills; knowledge of drafting standards, mathematics, science, and engineering technology; and a solid background in CADD techniques.

Education- Typical Degree Needed After High School Listen to this section

Degree
Post
high school credential
AA
Bachelor's
Master's
Doctoral or Professional Degree

Typical degree for an entry-level position: Associate's degree ? Types of Degrees and Credentials

High school courses in mathematics, science, computer technology, design, computer graphics, and, where available, drafting, are useful for people considering a career as a CAD technician. Employers prefer applicants who have also completed training after high school at a technical institute, community college, or 4-year college or university.

The kind and quality of drafting training programs vary considerably so prospective students should be careful in selecting a program. They should contact prospective employers to ask which schools they prefer and contact schools to ask for information about the kinds of jobs their graduates have, the type and condition of instructional facilities and equipment, and teacher qualifications.

Technical institutes offer intensive technical training, but they provide a less-general education than do community colleges. Either certificates or diplomas may be awarded. Many technical institutes offer 2-year associate degree programs, which are similar to, or part of, the programs offered by community colleges or state university systems. Their programs vary considerably in length and in the type of courses offered. Some public vocational-technical schools serve local students and emphasize the type of training preferred by local employers. Most require a high school diploma or its equivalent for admission. Other technical institutes are run by private, often for-profit, organizations sometimes called proprietary schools.

Community colleges offer courses similar to those in technical institutes, but include more classes in theory and liberal arts. Often, there is little or no difference between technical institute and community college programs. However, courses taken at community colleges are more likely to be accepted for credit at 4-year colleges. After completing a 2-year associate degree program, graduates may obtain jobs as drafters or continue their education in a related field at a 4-year college. Most 4-year colleges do not offer training in drafting, but they do offer classes in engineering, architecture, and mathematics that are useful for obtaining a job as a drafter.

Technical training obtained in the Armed Forces also can be applied in civilian drafting jobs. Some additional training may be necessary, depending on the technical area or military specialty.

Training differs somewhat within the CAD technician specialties, although the basics, such as mathematics, are similar. In an electronics drafting program, for example, students learn how to depict electronic components and circuits in drawings. In architectural drafting, they learn the technical specifications of buildings.

Companies That Hire CAD Technicians

Try it Out with an Activity or Project

STEM Activities

STEM activities are fun hands-on explorations that usually take from 10 minutes to one hour and use readily available household or classroom materials while introducing you to STEM concepts common in this career.

Science Project Ideas

Project Ideas are in-depth STEM explorations that have a strong focus on controlling variables, taking accurate measurements, and analyzing data suitable for investigating the scientific method or the engineering design process.

On the Job

Role Models

Read an interview with a self-described CAD fanatic.
I also like to keep abreast of the CAD industry in general and all the new technology and capabilities being introduced; hence the name CADFanatic.
Brian McElyea

Nature of the Work

CAD technicians prepare technical drawings and plans, which are used to build everything from manufactured products such as toys, toasters, industrial machinery, and spacecraft to structures such as houses, office buildings, and oil and gas pipelines.

In the past, CAD technicians sat at drawing boards and used pencils, pens, compasses, protractors, triangles, and other drafting devices to prepare a drawing by hand. Now, most CAD technicians use Computer Aided Design and Drafting (CADD) systems to prepare drawings. CAD technicians may also be referred to as CADD operators.

With CADD systems, CAD technicians can create and store drawings electronically so that they can be viewed, printed, or programmed directly into automated manufacturing systems. CADD systems also permit drafters to quickly prepare variations of a design. Although CAD technicians use CADD extensively, it is only a tool. CAD technicians still need knowledge of traditional drafting techniques, in addition to CADD skills. Despite the nearly universal use of CADD systems, manual drafting and sketching are used in certain applications.

CAD technicians' drawings provide visual guidelines and show how to construct a product or structure. Drawings include technical details and specify dimensions, materials, and procedures. CAD technicians fill in technical details using drawings, rough sketches, specifications, and calculations made by engineers, surveyors, architects, or scientists. For example, CAD technicians use their knowledge of standardized building techniques to draw in the details of a structure. Some use their understanding of engineering and manufacturing theory and standards to draw the parts of a machine; they determine design elements, such as the numbers and kinds of fasteners needed to assemble the machine. CAD technicians use technical handbooks, tables, calculators, and computers to complete their work.

CAD technicians can specialize in aeronautics, architecture, construction, piping, or electrical, electronic, or mechanical systems.

Work Environment

CAD technicians usually work in comfortable offices. They may sit at adjustable drawing boards or drafting tables when doing manual drawings, although most drafters work at computer terminals much of the time. Because they spend long periods of time in front of computers doing detailed work, drafters may be susceptible to eyestrain, back discomfort, and hand and wrist problems. Most CAD technicians work a standard 40-hour week; only a small number work part-time.

More Information

Ask Questions

Do you have a specific question about a career as a CAD Technician that isn't answered on this page? Post your question on the Science Buddies Ask an Expert Forum.
